Death of the Can Light

Offers the housing, trim, and lamp look without the overhead and heat!

Take me to LUNA!WATCH LUNA IN ACTION

Offering quiet optics and impressive performance, the Luna Series is a user friendly directional downlight. Available in round, square, tilting and fixed options, LUNA offers space uniformity to best suit your building's or project's needs. Plus, this is the industry's first WET location rated tilting fixture that now includes a 5-position CCT selectable switch.

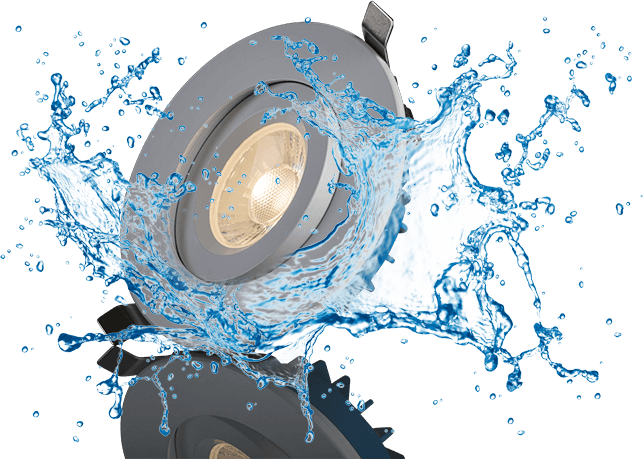

Wet-rated fixture

This is the industry's first wet location rated tilting fixture.

LUNA IES logo

* Applies to 4" LUNA series only

Show me the Tech Specs!
LUNA Wet Rated Fixture

At a glance

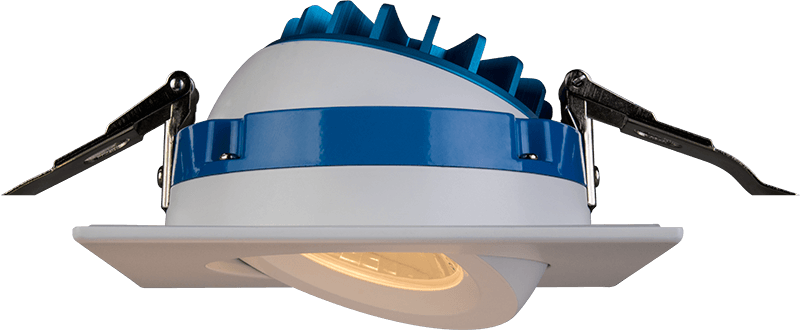

Luna Product At A Glance

SELECT YOUR COLOR TEMPERATURE

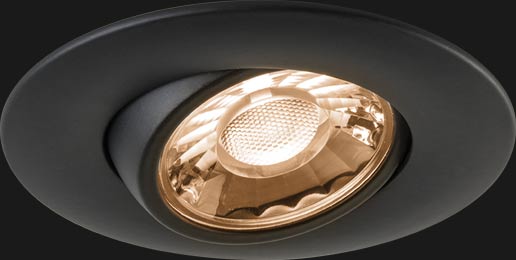

LUNA CCT Temperature Select 27K
LUNA CCT Temperature Select 30K
LUNA CCT Temperature Select 35K
LUNA CCT Temperature Select 40K
LUNA CCT Temperature Select 50K
LUNA CCT Selector Switch Image

2700K

3000K

3500K

4000K

5000K

Perfect for new construction / remodeling projects

High lumen output up to 1500. Has the ability to retro-fit into traditional can-light housings.

Show me the Tech Specs!

PERFECT FOR NEW CONSTRUCTION / REMODELING PROJECTS WITH WORRY-FREE INSTALLATION

Designed for new construction, retrofit, and re-model installs, Luna offers fantastic above the ceiling accessories. Specify the New Construction Kit (pre-mounting plate and hanger bars) for ultimate servicing freedom! Easily clip and secures the Luna driver onto the pre-mounting plate... To service, simply unclip, and pull through the cut-hole; never blindly service drivers again!

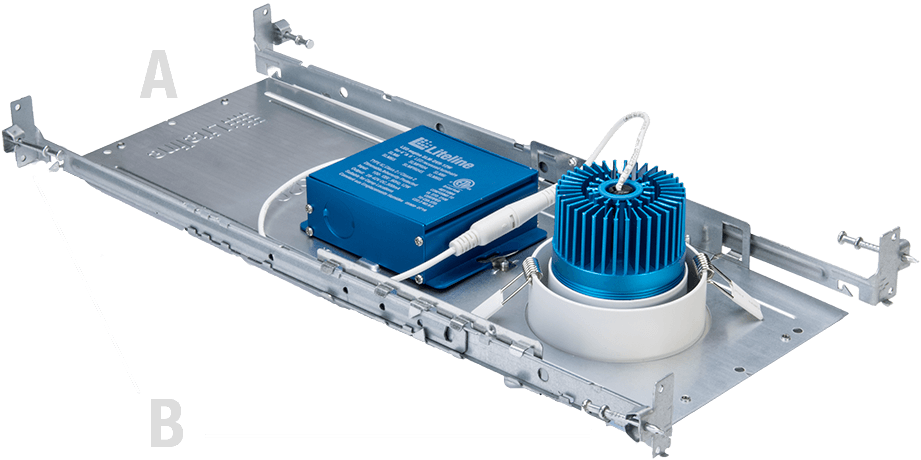

Pre-mounting plate (A) + hanger bars (B) may be purchased separately.

Go ahead. Go commercial.

LUNA 56 Pro Image

Designed for residential and light commercial spaces, you can now hit up to 2200 lumens with this round or square, CCT Selectable fixture, and easily retrofit a 5" or 6" cut hole.

Also available is a commercial driver for 3.5", 4" and the LUNA 56 PRO fixtures. These drivers offer 120~347V auto sensing and 0-10V dimming capabilities.

LUNA Feature Ratings

DISCOVER OUR LUNA SERIES

LUNA image 2 inch fixed round

2" Fixed
Round or Square

Color

White, Black, B,Nickel

CCT

Selectable CCT switch - 5 Positions
(27 K, 30 K, 35 K, 40 K, 50 K)
Dim to Warm

Lumens

560

Rating

IC Rated
Wet Location Rated

LUNA 3 Gimbal Flat Luna 3 Gimbal Angled

3" Gimbal
Round or Square

Color

White, Black, Brushed Nickel

CCT

27 K, 30 K, 35 K, 40 K
Dim to Warm

Lumens

625

Rating

IC Rated
Wet Location Rated

LUNA 3.5 Fixed

3.5" Fixed
Round or Square

Color

White, Black, Brushed Nickel

CCT

27 K, 30 K, 35 K, 40 K, 50 K
Dim to Warm

Lumens

885

Rating

IC Rated
Wet Location Rated

LUNA image 3.5 inch Gimbal Flat Luna 3.5 Gimbal Angled

3.5" Gimbal
Round or Square

Color

White, Black, Brushed Bronze, Brushed Nickel, Oil Rubbed Bronze

CCT

Selectable / Dim to Warm

Lumens

850

Rating

IC Rated
Wet Location Rated

LUNA image 3.5 inch regressed gimbalLUNA image 3.5 inch regressed gimbal angled

3.5" Regressed Gimbal
Round or Square

Color

White, Black, B.Nickel, *B.Bronze, *OR.Bronze, *Aluminum

CCT

3000K (round, white)
Selectable CCT switch - 5 Positions
(27 K, 30 K, 35 K, 40 K, 50 K)
Dim to Warm

Lumens

Up to 850

Rating

IC Rated
Wet Location Rated

LUNA image 3.5 inch gimbal multiples flat LUNA image 3.5 inch gimbal multiples angled

3.5" Gimbal
2 or 3-light Multiples

Color

White, Black, Silver, Brushed Nickel

CCT

Selectable CCT switch - 5 Positions
(27K, 30K, 35K, 40K, 50K)
Dim to Warm

Lumens

1350 (2-light), 2000 (3-light)

Rating

IC Rated
Wet Location Rated

LUNA image 4 inch Gimbal flat LUNA image 4 inch Gimbal angled

4" Gimbal
Round or Square

Color

White, Black, Silver, Brushed Nickel

CCT

30 K (round, white)
Selectable CCT switch - 5 Positions
(27 K, 30 K, 35 K, 40 K, 50 K)
Dim to Warm

Lumens

Up to 1060

Rating

IC Rated
Wet Location Rated

LUNA 4 Gimbal Flat LUNA 4 Gimbal angled

4" Regressed Gimbal
Round or Square

Color

White, Black, B.Nickel, *B.Bronze, *OR.Bronze

CCT

Selectable CCT switch - 5 Positions
(27 K, 30 K, 35 K, 40 K, 50 K)
Dim to Warm

Lumens

850

Rating

IC Rated
Wet Location Rated

*MOQ Required

LUNA image regressed round fixed gimbal

5" Regressed Fixed
Round

Color

White, Black. B.Nickel

CCT

Selectable CCT switch - 5 Positions
(27K, 30K, 35K, 40K, 50K)
Dim to Warm

Lumens

1200, 1450, 2200 options

Reflector Color

White, Black, Specular, Semi-Specular, Gold, Copper

Rating

IC Rated
Wet Location Rated

show me more

View or download the specification sheets for our products.

Show me the Tech Specs!
